Knowledge Graph of IoT Technology: A Comprehensive Technical Introduction from Devices, Protocols, Data to Applications

Learn the panoramic technology of IoT protocols, from physical connections to application protocols, and understand how to choose the right protocols to improve system performance and security. In-depth analysis of data processing, storage, and data analysis tools in IoT to ensure the efficient operation of the IoT ecosystem.

IoT protocols play a crucial role in modern IoT ecosystems. Choosing the right IoT data link protocol can significantly enhance system reliability and efficiency. Common IoT transport networks include Wi-Fi, 2G, 3G, 4G, and 5G, while application protocols like MQTT and CoAP are widely used in smart homes and industrial IoT. Effective data processing and storage solutions enable enterprises to fully leverage the massive amounts of data generated by IoT, achieving real-time monitoring and intelligent decision-making. Additionally, data analysis tools play a vital role in predictive maintenance and quality control. Finally, ensuring IoT security and privacy is fundamental to all IoT applications, preventing data breaches and system attacks.

iot Knowledges

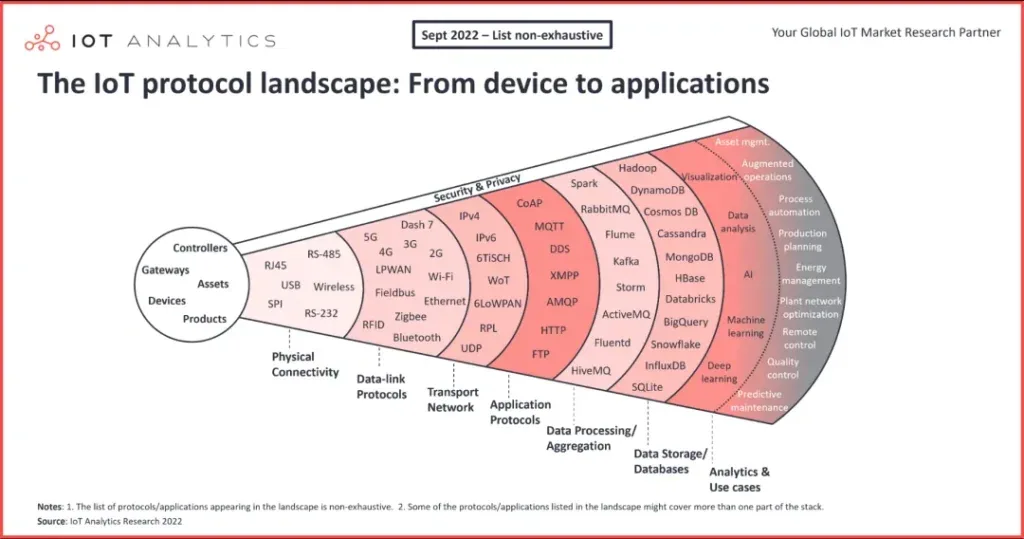

IoT protocols can be categorized into two main types based on their functions: transport protocols and communication protocols. Transport protocols mainly handle networking and communication between devices within a subnet, while communication protocols are primarily used for data exchange and communication between devices over the internet. Understanding and selecting the right IoT protocols is crucial for the successful deployment of IoT systems. Therefore, this article provides a detailed introduction and analysis of common IoT protocols from multiple perspectives, including physical connectivity, data link protocols, transport networks, application protocols, data processing and storage, analysis, and applications.

I. Physical Connectivity

Physical connectivity is the most fundamental layer in IoT systems, responsible for direct communication between devices. Physical connectivity protocols include various wired and wireless technologies, each with its unique advantages and application scenarios.

  • RJ45: RJ45 interfaces are commonly used for Ethernet connections, providing high bandwidth and stable connections suitable for scenarios requiring large data transmissions, such as video surveillance and enterprise networks.
  • USB: USB interfaces are widely used in various electronic devices, supporting high-speed data transfers and suitable for short-distance, high-speed data exchanges between devices.
  • SPI: The Serial Peripheral Interface (SPI) is a high-speed synchronous data transfer protocol commonly used for communication between microcontrollers and peripheral devices.
  • RS-232: RS-232 is a traditional serial communication protocol, still widely used in industrial automation and embedded systems despite its lower transmission speed.
  • RS-485: RS-485 is a serial communication standard supporting multi-point communication, often used in industrial control systems, supporting long-distance and high-interference data transmissions.
  • Wireless: Wireless communication technologies include Wi-Fi, Bluetooth, Zigbee, etc., providing flexible connection methods suitable for mobile devices and scenarios requiring flexible deployments.

II. Data-link Protocols

Data-link protocols play a critical role in IoT communications, responsible for establishing reliable data transfer connections above the physical layer. These protocols are essential for ensuring data transfer reliability, reducing latency, and enhancing efficiency.

  • Bluetooth: Bluetooth is a short-range wireless communication technology widely used in wearable devices, smart homes, and in-car systems. Bluetooth technology supports low-power modes (BLE), making it ideal for low-power devices that need to operate for extended periods.
  • Zigbee: Zigbee is a low-power, low-data-rate wireless network protocol suitable for smart homes, industrial automation, and medical monitoring. Zigbee networks have self-organization and self-healing capabilities, providing stable communication in complex environments.
  • Ethernet: Ethernet is a commonly used wired network technology, offering high bandwidth and low-latency connections suitable for industrial automation and enterprise networks that require high-speed data transfers.
  • Fieldbus: Fieldbus is a communication network used in industrial control systems, supporting data exchange and control commands among multiple devices. Common Fieldbus protocols include Profibus, Modbus, etc.
  • RFID: Radio Frequency Identification (RFID) is a wireless automatic identification technology that uses radio signals to identify and exchange data with target objects. RFID is widely used in logistics management, asset tracking, and access control systems.
  • 6LoWPAN: 6LoWPAN is a technology that introduces the IPv6 protocol into low-power wireless personal area networks, suitable for resource-constrained devices such as sensor networks and smart home devices. 6LoWPAN offers the advantages of internet protocols, including scalability and global unique address support.

The choice of IoT protocols directly impacts the performance and reliability of IoT systems. By understanding and selecting the appropriate data-link protocols, communication reliability can be ensured while improving system efficiency and flexibility. For example, in smart home applications, the low-power characteristics of Zigbee and Bluetooth make them ideal choices, while in industrial automation, Ethernet and Fieldbus provide higher bandwidth and more stable connections.

III. Transport Network

Transport networks play an essential role in IoT by connecting devices to the internet or other devices, determining data transmission speed, range, and reliability. Common transport network protocols include Wi-Fi, 2G, 3G, 4G, 5G, and LPWAN (such as LoRaWAN and Sigfox).

Analysis of Major Transport Network Protocols

1.Wi-Fi

  • Features: Provides high-bandwidth and low-latency wireless connections, widely used in home and enterprise networks.
  • Advantages: Suitable for high data volume transmissions, such as video surveillance and big data transfers.
  • Disadvantages: High power consumption, not suitable for low-power devices requiring long-term operation.
  • Application Scenarios: Smart homes, video surveillance, enterprise networks.

2.2G, 3G, 4G, 5G

  • Features: From low-speed data transmission of 2G to high-speed, low-latency communication of 5G, each generation of mobile communication technology has gradually improved transmission rates and reliability.
  • Advantages: Wide area coverage, suitable for mobile IoT applications.
  • Disadvantages: 2G and 3G have lower speeds, while 4G and 5G devices have higher power consumption.
  • Application Scenarios: Vehicle networking, mobile payments, remote monitoring.

3.LPWAN (LoRaWAN, Sigfox)

  • Features: Low-power wide-area network protocols suitable for long-distance, low-data-rate applications.
  • Advantages: Long-range coverage, low power consumption, supporting a large number of device connections.
  • Disadvantages: Low data transmission rate, not suitable for high data volume transmissions.
  • Application Scenarios: Smart cities, environmental monitoring, agricultural IoT.

Comparison of Transport Network Protocols

ProtocolFrequency RangeData Transmission RateCoverage AreaPower ConsumptionTypical Application Scenarios
Wi-Fi2.4/5 GHzHigh (54 Mbps+)IndoorHighSmart homes, video surveillance
2G850/900/1800 MHzLow (0.1 Mbps)Wide AreaLowSimple data transmission, SMS
3G850/900/2100 MHzMedium (2 Mbps)Wide AreaMediumMobile internet, video calls
4G700/800/1800/2100 MHzHigh (100 Mbps+)Wide AreaHighStreaming media, HD video
5G3.5/26/28 GHzVery High (1 Gbps+)Wide AreaHighAutonomous driving, VR
LoRaWAN868/915 MHzLow (0.3-50 Kbps)Wide AreaLowSmart cities, agricultural monitoring
Sigfox868/915 MHzLow (100 bps)Wide AreaLowAsset tracking, environmental monitoring

IV. Application Protocols

Application protocols play a crucial role in IoT communications, defining how data exchange and communication occur between devices. Below are some major application protocols.

1.MQTT (Message Queuing Telemetry Transport)

  • Features: A lightweight publish/subscribe protocol based on TCP/IP, suitable for low-bandwidth and unstable network environments.
  • Advantages: Small message header, saving bandwidth; supports QoS levels; supports persistent sessions.
  • Disadvantages: Requires server (Broker) support.
  • Application Scenarios: Smart agriculture, industrial IoT, vehicle networking.

2.CoAP (Constrained Application Protocol)

  • Features: A protocol designed for resource-constrained devices, using UDP for transmission, similar to HTTP's REST model.
  • Advantages: Lightweight, low power consumption, suitable for low-bandwidth networks.
  • Disadvantages: Does not guarantee data transmission reliability.
  • Application Scenarios: Smart water meters, electricity meters, environmental monitoring devices.

3.AMQP (Advanced Message Queuing Protocol)

  • Features: A protocol oriented to message queuing systems, providing reliable data transmission, commonly used in finance and industrial automation.
  • Advantages: Supports various messaging modes (such as publish/subscribe, request/response), provides high reliability and security.
  • Disadvantages: Complex protocol, high implementation cost.
  • Application Scenarios: Banking systems, enterprise messaging, industrial automation.

4.HTTP/HTTPS (HyperText Transfer Protocol/Secure HyperText Transfer Protocol)

  • Features: Widely used in internet communication, based on the request/response model.
  • Advantages: Mature and stable, supports most network environments and devices.
  • Disadvantages: High power consumption, not suitable for low-bandwidth and high-latency environments.
  • Application Scenarios: Smart homes, remote monitoring, IoT portals.

5.DDS (Data Distribution Service)

  • Features: A decentralized publish/subscribe protocol suitable for real-time and high-reliability industrial IoT.
  • Advantages: Supports real-time data distribution, high availability, and low latency.
  • Disadvantages: High implementation and maintenance cost.
  • Application Scenarios: Industrial automation, military systems, aerospace.

6.XMPP (Extensible Messaging and Presence Protocol)

  • Features: An XML-based instant messaging protocol, suitable for applications requiring high-security messaging.
  • Advantages: Open-source, decentralized, supports multiple messaging modes.
  • Disadvantages: Large message headers, increasing bandwidth demand.
  • Application Scenarios: Instant messaging, secure messaging, IoT message exchange.

V. Data Processing/Aggregation

In IoT systems, data processing and aggregation are key steps to ensure that data collected from devices can be effectively utilized. Data processing and aggregation tools help to analyze and process large amounts of data in real time, supporting intelligent decision-making and operations. Below are some common data processing and aggregation tools, along with their features, advantages, disadvantages, and application scenarios.

Common Data Processing and Aggregation Tools

ToolFeaturesAdvantagesDisadvantagesApplication Scenarios
SparkDistributed data processing frameworkHigh performance, scalable, supports multiple data sourcesRequires cluster environment, complex configurationReal-time data analysis, big data processing
RabbitMQOpen-source message queue systemHigh reliability, scalable, supports multiple messaging modesHigh configuration and maintenance costEnterprise messaging, data synchronization
FlumeDistributed log collection and transmission systemEasily scalable, supports multiple data sources and targetsRequires cluster environment, complex configurationLog collection, data transmission, real-time analysis
KafkaHigh-throughput distributed stream processing platformHigh availability, high throughputComplex system, high maintenance costReal-time data stream processing, event-driven architecture
StormDistributed real-time computation systemLow latency, high throughputRequires cluster environment, complex configurationReal-time analysis, data stream processing, real-time monitoring
ActiveMQOpen-source message middlewareHigh reliability, scalabilityHigh configuration and maintenance costEnterprise messaging, data synchronization
FluentdOpen-source data collectorSupports multiple data sources and targets, flexible configurationPerformance may be affected as data volume increasesLog collection, data transmission, real-time monitoring

As the number of IoT devices and the volume of data increase, the demand for data processing and aggregation tools will continue to grow. New technologies and tools will continue to emerge, providing more choices and possibilities for IoT applications. By continuously learning and mastering these technologies, we can better address the various challenges in IoT applications, achieving smarter and more efficient IoT systems.

VI. Data Storage/Databases

In IoT systems, data storage and database technologies are crucial for managing and processing large amounts of data. As the number of IoT devices increases, choosing the right data storage solution can improve system performance and reliability. Below are some common data storage and database systems, along with their features, advantages, disadvantages, and application scenarios.

Comparison of Data Storage and Database Systems

Database SystemFeaturesAdvantagesDisadvantagesApplication Scenarios
HadoopDistributed storage and processing frameworkHighly scalable, low costComplex configuration, requires high technical supportData analysis, machine learning, big data processing
DynamoDBAWS-provided NoSQL database serviceHigh performance, scalable, easy to integrate with AWSHigh cost, dependent on AWS environmentReal-time data storage, IoT applications, mobile applications
CassandraDistributed NoSQL databaseHighly scalable, excellent write performanceWeak read performance, complex configurationReal-time analytics, IoT data storage, social media data storage
MongoDBDocument-oriented NoSQL databaseHighly flexible, easy to scaleWeak transaction support, low write performanceContent management systems, IoT data storage, mobile applications
HBaseDistributed database based on HadoopHighly scalable, strong consistencyDependent on Hadoop ecosystem, complex configurationReal-time data analysis, IoT data storage, data lakes
DatabricksData analysis platform based on Apache SparkHigh performance, easy to useHigh cost, dependent on cloud environmentBig data analysis, machine learning, IoT data processing
BigQueryGoogle-provided data warehouseHigh performance, scalable, supports real-time queriesHigh cost, dependent on Google Cloud environmentBig data analysis, IoT data storage, business intelligence
SnowflakeCloud data platformHigh performance, easy to scale, supports multi-cloud environmentsHigh cost, dependent on cloud environmentData warehousing, data lakes, IoT data analysis
InfluxDBOpen-source time series databaseHigh performance, low latencyLimited functionality, not suitable for complex queriesReal-time monitoring, IoT data storage, performance monitoring
SQLiteEmbedded relational databaseLightweight, easy to useNot suitable for large-scale data storage, limited functionalityMobile applications, embedded devices, IoT device data storage

VII. Analytics & Use Cases

Data analytics is crucial in IoT, enabling intelligent decision-making and operational optimization through the analysis of large amounts of data. Below are some common data analytics methods and tools, along with their application scenarios.

Common Data Analytics Methods and Tools

1.AI (Artificial Intelligence)

  • Features: Simulates human intelligence for data processing and decision-making.
  • Advantages: Can handle complex data patterns, supports automated decision-making.
  • Disadvantages: Requires large amounts of data for training, high computational cost.
  • Application Scenarios: Smart homes, autonomous driving, personalized recommendations.

2.Machine Learning

  • Features: Uses algorithms to automatically learn and improve models, supports predictive analytics.
  • Advantages: Suitable for large-scale data analysis, supports real-time predictions.
  • Disadvantages: Requires large training datasets, complex model tuning.
  • Application Scenarios: Predictive maintenance, anomaly detection, demand forecasting.

3.Deep Learning

  • Features: Advanced machine learning method based on neural networks, suitable for complex pattern recognition.
  • Advantages: Excellent performance in image and voice recognition, supports automatic feature extraction.
  • Disadvantages: High computational resource requirements, long training time.
  • Application Scenarios: Image recognition, voice recognition, natural language processing.

4.Predictive Maintenance

  • Features: Uses data analytics to predict equipment failures and perform maintenance in advance.
  • Advantages: Reduces downtime, lowers maintenance costs, extends equipment life.
  • Disadvantages: Requires high-quality sensor data and models.
  • Application Scenarios: Manufacturing, transportation, energy management.

5.Quality Control

  • Features: Uses data analytics to monitor the production process and ensure product quality.
  • Advantages: Improves product quality, reduces scrap rates, optimizes production processes.
  • Disadvantages: Requires real-time data and high-precision models.
  • Application Scenarios: Manufacturing, food processing, pharmaceutical production.

6.Remote Control

  • Features: Uses the internet to remotely monitor and control devices.
  • Advantages: Real-time monitoring of device status, quick response to issues, improves management efficiency.
  • Disadvantages: Requires highly stable network connections and security guarantees.
  • Application Scenarios: Smart homes, industrial automation, agricultural monitoring.

7.Energy Management

  • Features: Uses data analytics to optimize energy usage and reduce consumption.
  • Advantages: Improves energy efficiency, reduces operational costs, achieves sustainable development.
  • Disadvantages: Requires multi-source data integration and efficient analysis models.
  • Application Scenarios: Smart cities, industrial energy management, building energy efficiency management.

VIII. Security & Privacy

While IoT systems bring convenience, they also face serious security and privacy issues. IoT devices are often connected to the internet, making them vulnerable to various cyber-attacks. Therefore, protecting the security and privacy of IoT systems is a key issue.

Common Security Threats and Challenges

1.Device Security Vulnerabilities

  • Issue: Many IoT devices lack sufficient security protection due to hardware limitations or cost considerations, making them easy targets for hackers.
  • Countermeasure: Enhance device security design, regularly update firmware, and patch known vulnerabilities.

2.Data Transmission Security

  • Issue: During data transmission, data may be intercepted, tampered with, or stolen.
  • Countermeasure: Use encryption technologies to protect data transmission, such as SSL/TLS protocols, ensuring data security during transmission.

3.Authentication and Access Control

  • Issue: Unauthorized access may lead to data breaches and device control.
  • Countermeasure: Implement strong authentication mechanisms, use multi-factor authentication (MFA), and enhance access control policies.

4.Privacy Protection

  • Issue: The massive amount of personal data collected by IoT devices poses privacy breach risks.
  • Countermeasure: Comply with data privacy protection regulations, such as GDPR, implement data minimization principles, and ensure user data is fully protected.

Security Measures and Best Practices

1.Encryption Technology

  • Application: Encrypt sensitive data during storage and transmission to prevent unauthorized access.
  • Tools: SSL/TLS, AES, RSA encryption algorithms.

2.Authentication Mechanisms

  • Application: Ensure the authenticity of devices and users to prevent unauthorized access.
  • Tools: OAuth, JWT, multi-factor authentication (MFA).

3.Network Security Protection

  • Application: Provide security protection at the network layer to prevent cyber-attacks.
  • Tools: Firewalls, intrusion detection systems (IDS), intrusion prevention systems (IPS).

4.Regular Updates and Patch Management

  • Application: Timely update device firmware and software to fix known security vulnerabilities.
  • Tools: Automatic update mechanisms, vulnerability scanning tools.

5.Security Audits and Monitoring

  • Application: Conduct regular security audits and real-time monitoring of IoT systems to promptly detect and respond to security threats.
  • Tools: Log analysis tools, SIEM systems.

Case Studies

1.Case 1: Mirai Botnet Attack

  • Event: In 2016, the Mirai botnet exploited security vulnerabilities in IoT devices, launching a massive DDoS attack that caused numerous websites and services to crash.
  • Lesson: The default passwords and security settings of IoT devices are easily exploitable and must be strengthened.

2.Case 2: Smart Home Device Hacked

  • Event: A smart home system was hacked due to device firmware vulnerabilities, leading to a user's privacy data being exposed.
  • Lesson: Regular updates and patching of firmware and software are essential to protect user privacy.

IoT protocols play a crucial role in the IoT ecosystem. From physical connectivity, data-link protocols, transport networks, application protocols to data processing and analysis, each layer of the protocol stack is essential for ensuring the normal operation of IoT devices and systems. Choosing the right IoT protocols can enhance system performance, reliability, and security.

The above content covers key aspects of IoT transport networks, application protocols, and data processing and aggregation tools, providing comprehensive references for the design and implementation of IoT systems. By thoroughly understanding these protocols and tools, we can better design and optimize IoT systems to meet various application needs.

References

  1. Particle: A 2024 guide to IoT protocols and standards
  2. MDPI: Internet of Things: A Comprehensive Overview on Protocols
  3. DataFlair: IoT Technology & Protocols - 7 Important IoT Communication Protocols
  4. All About Circuits: IoT Communication Protocols

Start Free!

Get Free Trail Before You Commit.
