RKNN ONNX Opset Compatibility Guide: Constraints, Failures, and Baselines for Edge NPU Deployment

RKNN ONNX opset compatibility is often the hidden factor behind conversion failures, unstable inference, and long-term maintenance risk in Rockchip NPU deployments.

1. Background and Problem Definition: Why Opset Becomes a Key Constraint in RKNN Projects

1.1 From “Can the Model Be Exported?” to “Can the Model Be Maintained Long-Term?”

In many edge AI projects, the initial focus is usually simple:
Can the model be exported from PyTorch to ONNX correctly?
Can the toolchain accept it and run it on the board?

At this stage, success is often defined as “the first demo works.”

However, once a project moves into real delivery, the nature of the problems changes quickly:

• The model needs minor structural adjustments to adapt to new scenarios
• The algorithm team upgrades the base framework or model version
• The same product line needs to reuse the model across multiple SoCs

At this point, the ONNX opset—originally treated as a neutral “intermediate format”—suddenly becomes a highly sensitive engineering constraint. Many teams only realize at this stage that:

Whether a model can continue to evolve is often not determined by accuracy or compute power, but by whether the conversion pipeline remains stable.

Here, “stability” does not mean “can it be converted today”, but rather:

Will it remain controllable over the next 6–12 months?

In RKNN scenarios, opset selection is almost equivalent to locking in future engineering freedom in advance.

1.2 Why ONNX Generality Breaks Down in NPU Scenarios

By design, ONNX aims to solve cross-framework model exchange—not to guarantee executability on specific hardware.

This usually works fine in CPU/GPU ecosystems because:

• Runtimes can rely on kernel fallback paths
• Graph optimizations and operator fusion can be adjusted at runtime
• There is significant buffer space between operator semantics and execution

However, in NPU scenarios, most of these assumptions no longer hold. NPUs behave much closer to ASICs:

• Supported operator sets are limited and fixed
• Tensor shapes, layouts, and operator combinations have strict constraints
• There is no “run first and fix later” runtime compromise

As a result:

A fully valid ONNX model—even one verified on CPU—can still be outright rejected during NPU conversion.

On Rockchip platforms, RKNN’s role is not to “interpret ONNX graphs as best as possible,” but to compile ONNX graphs into static, NPU-executable representations.

This is not a toolchain maturity issue, but a structural mismatch between generic IRs and hardware execution models.

1.3 What Opset Really Means in RKNN Projects

For Rockchip NPUs, the conversion stage must decide up front:

• Whether every operator has a hardware mapping
• Whether operator attributes satisfy NPU constraints
• Whether the entire graph can be fully offloaded to the NPU

In this context, opset is no longer just a syntax version—it becomes an upstream constraint on how the graph is expressed.
Across different opsets, the same operator may differ in attribute definitions, default behavior, or shape inference rules—and RKNN will amplify these differences at compile time.

Therefore, opset selection is not a parameter you can casually roll back. It is more like a platform-level technical decision: once fixed, the freedom of future model structures is implicitly constrained.

2. RKNN Toolkit2 Opset Support and Conversion Constraints

2.1 The Actual Conversion Path from PyTorch to NPU

On paper, the RKNN pipeline looks straightforward:

PyTorch → ONNX (with opset) → RKNN Toolkit → NPU Binary

But in practice, success is determined not by the linear flow, but by what information is preserved or lost at each stage.

The most fragile—and irreversible—step is ONNX → RKNN.

Once inside RKNN conversion, the model is no longer treated as a dynamically interpretable graph. It must become a fully compilable static structure. Any node that cannot be mapped to the NPU will cause the entire conversion to fail—not a partial fallback.

2.2 RKNN Behaves More Like a Compiler Than a Runtime

Unlike many GPU inference engines, RKNN behaves much closer to a traditional compiler:

• All operator mappings are resolved at compile time
• There is no runtime operator substitution
• Conversion failure means the design assumption itself is invalid

This is why engineers new to RKNN often find it “overly strict.”
GPU-era intuition—“if an operator isn’t supported, it’ll just be slower”—does not apply.

This strictness is not a flaw, but the price paid for determinism and efficiency. Once conversion succeeds, execution paths, latency, and resource usage become highly predictable.

2.3 Why Opset Changes Directly Impact Conversion Stability

In the ONNX ecosystem, newer opsets usually mean:

• More flexible operator definitions
• Richer attribute combinations
• Better semantics for dynamic shapes

But in RKNN scenarios, these “improvements” often introduce uncertainty. New opsets may expose attributes RKNN doesn’t support or change default behaviors, leading to:

• Immediate unsupported attribute errors
• Models that convert but behave incorrectly at runtime
• Dramatically different stability across opsets for the same model

That’s why in real projects:

Newer opsets are not necessarily better—verified opsets are safer.

Stability comes from well-defined constraints, not maximal expressiveness.

3. ONNX to RKNN Conversion Failures Patterns in Engineering Practice

This section focuses on real-world failure patterns engineers repeatedly encounter, rather than on conversion “procedures.”

These failures are rarely due to missing documentation—they stem from mismatches between toolchain assumptions and model design assumptions.

3.1 Conversion-Time Failure vs Runtime Anomalies

In RKNN projects, failures typically fall into two categories, with very different engineering costs.

Table 3-1: Engineering Differences Between Failure Types

In practice, the most dangerous situation is not “can’t convert”, but “converts successfully but produces unreliable results.”

3.2 Common Incompatible Structures and Patterns

Most failures are not caused by exotic operators, but by how model structures are expressed.

High-Risk Structural Patterns (Not Operator Lists)

• Dynamic shape propagation
• Stacked reshape / permute chains
• Post-processing logic embedded in detection heads
• Implicit broadcast behaviors

These are perfectly legal in ONNX, but problematic for NPUs because:

• Shapes cannot be resolved at compile time
• Data layouts cannot be mapped to fixed hardware paths
• Operator fusion limits are exceeded

Valid ONNX vs Executable NPU Graph

---
title: "Valid ONNX Structure vs NPU-Executable Structure"
---
graph TD;
A["ONNX Graph with Dynamic Shape"] --> B["Semantically Valid via Checker"];
B --> C["RKNN Compile-Time Shape Freezing"];
C -->|Indeterminate| D["Conversion Failure"];

The issue is not that ONNX is “wrong,” but that NPUs require fully deterministic graphs.

3.3 Opset × Model Structure: The Hidden Combination Risk

A frequently underestimated reality:

An opset can be valid, a model structure can be valid, yet the combination fails.

This happens because opset changes may alter default operator behavior or attribute expression, directly affecting RKNN’s compile-time decisions.

Table 3-2: Typical Opset–Structure Risk Combinations

This explains why many teams find that rolling back opset restores control rather than “downgrading capability.”

4. YOLOv8 RKNN Deployment Constraints and Risks: Where the Tension Comes From

YOLOv8 is not “unsuitable” for RKNN—but its design goals inherently conflict with NPU execution models.

4.1 Structural Characteristics of YOLOv8

YOLOv8 exhibits several engineering traits:

• Highly modular head structures
• Heavy use of reshape / concat / split
• Friendly support for dynamic input sizes
• Increasingly integrated post-processing

These are strengths on GPU/CPU—but significantly increase compile-time complexity on NPUs.

4.2 Common YOLOv8 → RKNN Breaking Points

Mermaid: Key Breakpoints in YOLOv8 to RKNN Conversion

---
title: "YOLOv8 ONNX Validity vs NPU Executability"
---
graph LR

classDef onnx fill:#E3F2FD,stroke:#1976D2,stroke-width:2,rx:10,ry:10;
classDef ok fill:#E8F5E9,stroke:#2E7D32,stroke-width:2,rx:10,ry:10;
classDef npu fill:#FFF8E1,stroke:#F9A825,stroke-width:2,rx:10,ry:10;
classDef fail fill:#FFEBEE,stroke:#C62828,stroke-width:2,rx:10,ry:10;
classDef note fill:#FFF9E6,stroke:#E6A700,stroke-width:1.5,rx:8,ry:8;

A["ONNX Graph with Dynamic Shape / Ops"]:::onnx
B["ONNX Checker / Runtime-Semantic Valid"]:::ok
C["NPU Compiler (RKNN) Compile-Time Shape Fixing"]:::npu
D["Indeterminate Dimensions (H/W/Batch/Anchors)"]:::fail
E["Conversion Failure / CPU Fallback (Uncontrolled)"]:::fail

A --> B --> C --> D --> E

N1["Mitigation: Fix input size at export; remove dynamic dimensions and control flow; move NMS/post-processing outside NPU."]:::note
E -.-> N1

These are not sporadic bugs, but direct manifestations of design mismatch.

4.3 Risk Differences Across YOLOv8 Task Types

Table 4-1: YOLOv8 Tasks vs RKNN Adaptation Risk

This does not mean YOLOv8 is “bad,” but that NPU compilation was not its primary design target.

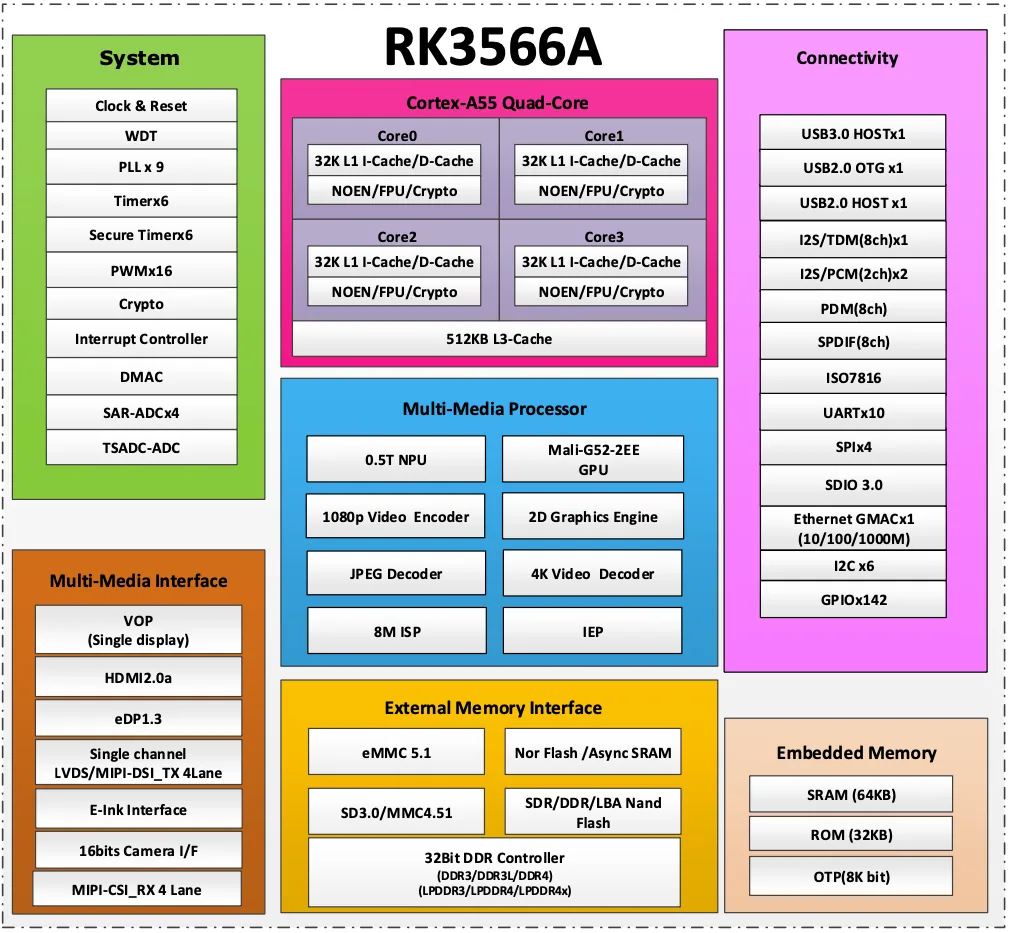

Learn more about YOLOv8 RKNN deployment constraints on RK3566

5. Engineering Tradeoffs and System Fit: Balancing Model Freedom and NPU Determinism

Once the failure mechanisms are clear, the real question becomes:
Should you continue forcing models through RKNN, or redesign the system with NPU constraints as first-class citizens?

5.1 Two Fundamentally Different Paths

Discussions about “RKNN adaptation” often mask a deeper question: what are you optimizing—model freedom or delivery certainty?

• If your product requires frequent structural iteration, you need evolution space
• If your product demands predictable latency, power, and cost, you need determinism

RKNN’s value lies not in flexibility, but in predictability.

Table 5-1: Engineering Tradeoffs (Decision-Oriented)

A counterintuitive but common conclusion:
In RKNN projects, it is often cheaper to design for hardware early than to patch errors later.

5.2 Opset Locking and Product Lifecycle Impact

In RKNN projects, opset functions like an interface contract. Once validated, upgrades must be treated like system dependency upgrades.

Typical lifecycle pattern:

• PoC: make it run; pick a workable opset
• MVP: lock structure and prioritize stability
• Production: freeze opset, tools, export scripts
• Iteration: move variability to the system layer

System-Level Isolation of Variability

---
title: "Isolating Model Variability from NPU Constraints"
---
graph TD
A["Input Strategy Layer (Resize / Crop / Tiling / Padding)"]
B["NPU-Stable Model (Static Shape / INT8 RKNN)"]
C["Post-Processing (Decode / NMS / CPU or DSP)"]
D["Business Logic Layer (Thresholds / Rules / Alerts)"]

A --> B --> C --> D

5.3 Which Systems Fit RKNN—and Which Don’t

Table 5-2: System Types vs RKNN Suitability

A practical rule of thumb:
If iteration comes from rules and thresholds, RKNN is friendly.
If it comes from model structure, RKNN becomes a production line requiring dedicated maintenance.

Explore the platform-based edge AI system design

6. Rockchip NPU Model Deployment: Boundaries and Risk Control

This chapter does not provide a “best practices checklist.”
Instead, it focuses on answering the two most common engineering questions:

• When should you stop forcing RKNN adaptation?
• How can you minimize failure cost as early as possible?

6.1 When You Should Stop “Forcing RKNN”

When two to three of the following signals appear, it usually means the return on continued adaptation is starting to decline:

• Every small model change introduces new incompatible nodes, and the issue cannot be resolved through local replacements
• You find yourself writing more and more export-specific scripts for the toolchain, and only a few people on the team can maintain them
• Conversion technically succeeds, but inference anomalies cannot be reproduced consistently or explained (the most dangerous case)
• The product roadmap requires frequent changes to the backbone/head or the introduction of new task branches (for example, expanding from detection to segmentation or pose)
• Version upgrades turn into a “game of chance,” with no repeatable validation baseline

In these situations, the more pragmatic approach is usually a binary choice:

• Either converge the model structure toward an NPU-friendly form,
• Or shrink the role of the NPU, letting it handle only the parts it is good at.

6.2 Model Design Principles for RKNN

The value of these principles is not that they “sound right,” but that they reduce organizational friction—giving algorithm teams and engineering teams a shared language around the same constraints.

• Prefer shape paths that can be statically determined; avoid bringing dynamic behavior into the NPU compilation stage
• Minimize stacked permute / reshape operations, especially near the head
• Place post-processing outside the model whenever possible (CPU or lightweight operators), and treat NPU output as raw prediction tensors
• Establish traceable baselines for opset, export scripts, and toolchain versions to avoid “same model name, different graph” situations
• Treat “can be compiled by the NPU” as an acceptance criterion, rather than “the error was patched”

These points may sound conservative, but they often determine whether, at mass-production time, you are reusing a stable pipeline or firefighting every week.

6.3 A Practical Early-Stage Validation Method (Shifting Trial-and-Error Upstream)

Early in a project, the most effective strategy is not to push accuracy to the limit immediately, but to first establish a stable and repeatable validation loop:

1. Fix the export entry point
   Same PyTorch commit + same export script + same opset
2. Fix reference inputs
   Prepare a small set of repeatable sample tensors to prevent data noise from affecting judgments
3. Fix conversion outputs
   Record RKNN conversion logs, graph optimization summaries, quantization configurations, and final artifact hashes
4. Fix on-device validation
   At minimum, include output tensor statistics (min / max / mean / distribution); do not rely only on visual inspection
5. Fix regression gates
   Every model change must first pass “compilable + output consistency” before discussing accuracy improvements

Once this baseline is in place, opset selection is no longer a matter of experience or guesswork—it becomes locked in by evidence.

7. Common Errors → Structural Causes → Engineering Strategies (ONNX → RKNN)

Note: Error messages vary across RKNN Toolkit versions, SoCs, and ONNX exporters. This table groups errors by typical keywords for faster root-cause identification.

Table 6-1: High-Frequency Conversion Errors

Final Thought

RKNN / ONNX opset compatibility is not just a toolchain issue—it is an engineering contract problem.

In practice, RKNN ONNX opset compatibility is not a tooling detail but a system contract. Once this constraint is understood and controlled, NPU deployment becomes predictable instead of fragile.

The more expressive freedom you demand from the model, the harder it becomes for static NPU backends to guarantee executability.
Once you accept constraints and push variability into the system layer, the deterministic advantages of NPUs can finally be realized.

FAQ
