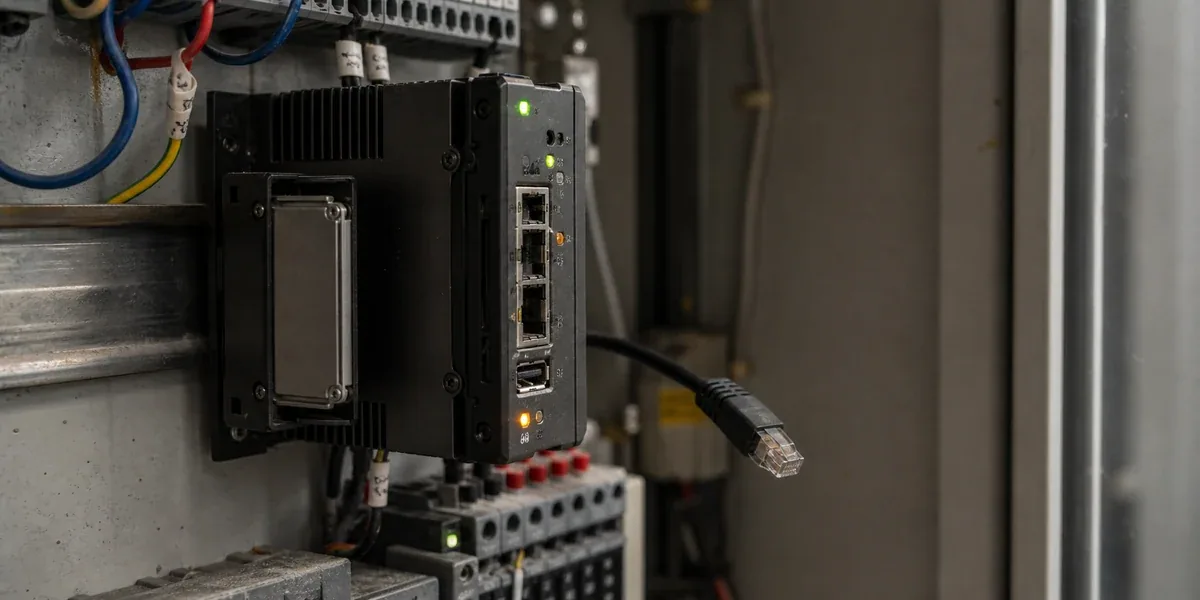

Why Industrial Edge Gateways Need Store-and-Forward

Many teams still treat an industrial edge gateway as a simple protocol bridge: collect data from the field, forward it to the cloud, and relay commands back down when they arrive. If the link works while the network is healthy, the design looks good enough.

That assumption usually breaks in real deployments. Industrial links are not just “online or offline.” A gateway may face:

• intermittent 4G or private WAN instability
• broker reconnect storms after a short outage
• API throttling on the cloud side
• telemetry that keeps arriving from PLCs while upstream delivery is blocked
• commands that were accepted by the gateway but not yet confirmed by the platform
• delayed replay mixed with newly collected realtime data

The core conclusion of this article is: if an industrial gateway sits between stable field collection and unstable upstream delivery, it should not behave like a transparent forwarder. It should behave like a reliable delivery boundary. That means implementing store-and-forward with local persistence, ordering control, deduplication, replay recovery, acknowledgment tracking, and expiration policy. Without that layer, the platform does not merely receive delayed data. It loses the ability to explain whether a record is complete, duplicated, stale, or still pending confirmation.

Definition Block

In this article, store-and-forward does not mean “save some data while offline and push it later.” It means a controlled delivery lifecycle: persist locally -> mark sendable -> send -> wait for platform confirmation -> safely delete or archive, with explicit rules for ordering, deduplication, retries, and expiration.

Decision Block

If a gateway only serves a tiny demo system, carries low-value data, and can tolerate short visibility gaps, direct forwarding may be enough. But once the system supports production auditability, alarm history, meter data, cold-chain traceability, or fleet operations, store-and-forward becomes the safer default. Otherwise weak-network recovery turns into a mix of missing records, duplicate writes, and out-of-order state.

1. Why direct forwarding is not enough

1.1 Outages create explainability problems, not just latency

A network break interrupts more than transmission time. It breaks a chain of operational meaning:

• when the value was produced
• when the gateway received it
• whether the platform ever acknowledged it
• whether the record was already consumed downstream
• whether the replayed record should still affect alarms or reports

If the gateway does not preserve that chain, recovery produces a pile of late data with no trustworthy context. The result is usually:

• reports polluted by late-arriving values treated as current state
• duplicate alarm evaluations after replay
• operations teams unable to tell whether a gap came from field collection failure or upstream delivery failure

In practice, the first thing you lose without store-and-forward is not throughput. It is interpretability.

1.2 The real engineering goal is integrity, not connectivity

An industrial gateway usually sits between components that move at different speeds:

• field polling loops or event subscriptions
• normalization and mapping logic
• local queueing and replay behavior
• cloud brokers, APIs, and databases

Those layers do not fail or recover at the same pace. A PLC may still respond every second while the upstream broker rejects writes or the WAN link flaps. Without a local durability boundary, the system usually falls into one of two bad choices:

• pause or degrade field collection
• drop upstream failures and accept unrecoverable holes

For energy data, machine state history, production traceability, or cold-chain monitoring, those holes are operationally expensive. They are not a cosmetic delay.

2. What a usable store-and-forward design must solve

flowchart LR

F("Field Devices / PLCs / Instruments"):::slate --> C("Collection Loop\nPoll / Subscribe / Event"):::blue
C --> W("Local Persist\nappend-only queue"):::orange
W --> S("Send State Machine\nready -> inflight -> acked"):::violet
S --> P("Cloud Platform / Broker / API"):::green
P --> A("Platform Confirmation\nACK / dedupe / durable write"):::green
A --> D("Local delete or archive"):::slate

classDef blue fill:#EAF4FF,stroke:#3B82F6,color:#16324F,stroke-width:2px;
classDef orange fill:#FFF3E8,stroke:#F08A24,color:#7C3F00,stroke-width:2px;
classDef violet fill:#F4EDFF,stroke:#8B5CF6,color:#4C1D95,stroke-width:2px;
classDef green fill:#ECFDF3,stroke:#22C55E,color:#14532D,stroke-width:2px;
classDef slate fill:#F8FAFC,stroke:#64748B,color:#1F2937,stroke-width:2px;

2.1 Local buffering must be durable, not informal

The queue must answer concrete questions:

• does every record have a stable message_id
• is the record persisted before the collection loop moves on
• can the queue recover after process restart or power loss
• can the system distinguish ready, inflight, acked, and expired

If data only lives in memory or in an ad hoc text file, a restart leaves the gateway unable to tell what already succeeded and what should be retried.

2.2 Acknowledgment must advance state

A practical send state machine usually includes at least:

The key point is structural: confirmation must move local state forward.

This is why protocol-level acknowledgment is often insufficient.
MQTT QoS 1, for example, only proves the broker accepted a publish. It does not prove the business pipeline persisted it or deduplicated it correctly. If the system needs ingestion guarantees, it also needs a business ACK.

2.3 Replay order must be explicit

One of the most common replay failures is mixing backlog with fresh realtime flow:

• the gateway buffers ten minutes of telemetry during an outage
• connectivity returns
• field polling continues
• replay and new collection are pushed upstream at the same time

Now the platform may receive a 10:10 sample before a 10:03 replayed sample.
Without ordering rules, charts, aggregations, and alarm transitions become unreliable.

A safer design usually means:

• a monotonic sequence or event-time rule per device_id + point_id
• shared ordering checks across backlog and realtime paths
• explicit support for late-arriving data on the platform side

3. Four failure patterns teams often underestimate

3.1 Weak dedupe keys create duplicate telemetry after restart

If a record identifier is built from “current timestamp plus an in-memory counter,” a reboot can recreate the same key space.
A stronger dedupe key normally includes:

• gateway instance identity
• source object identity
• event time or collection window
• a locally persisted increasing sequence

That gives the platform a stable basis for distinguishing replay from duplication.

3.2 No expiration policy eventually fills the disk

Not every message deserves infinite retention.

• one-second temperature readings may only need a bounded replay window
• billing or settlement records may need to wait until explicit confirmation
• high-frequency vibration payloads may need edge aggregation before uplink

Store-and-forward therefore needs more than retry logic. It also needs:

• a retention window per message class
• explicit drop or aggregation rules
• an audit event when valuable data is discarded

Without those rules, the gateway eventually chooses between uncontrolled disk growth and silent loss.

3.3 Commands and telemetry cannot share the same semantics

Telemetry replay usually aims for eventual persistence. Commands carry side effects.
If both travel through the same retry behavior, the system can easily become unsafe:

• losing a telemetry sample affects reporting
• replaying a command may trigger a duplicate physical action

A safer split is:

• telemetry supports idempotent replay
• commands carry a distinct command_id
• command status moves through accepted / executed / failed / expired
• non-idempotent commands do not reuse ordinary telemetry replay paths

This is a common reason gateway teams succeed on telemetry buffering but fail when remote control is added later.

3.4 Event time and ingest time both matter

After a replay window, the platform often needs multiple timestamps:

• event_time
• gateway_received_at
• platform_ingested_at

If only ingest time is stored, replay distorts historical truth.
If only event time is stored, operators cannot measure recovery lag or delivery delay.

A durable design keeps both.

4. A practical layering model for gateway reliability

flowchart TB

P("Protocol Collection\nModbus / OPC UA / Serial / MQTT"):::blue --> N("Normalization\nObjects / Units / Quality"):::orange
N --> Q("Local Queue\nDurability / Dedupe / State Machine"):::violet
Q --> T("Transport\nMQTT / HTTP / gRPC"):::green
T --> C("Cloud Confirmation\nBusiness ACK / Idempotency"):::green
Q --> O("Operations Metrics\nQueue Depth / Retry Count / Expiry Rate"):::slate

classDef blue fill:#EAF4FF,stroke:#3B82F6,color:#16324F,stroke-width:2px;
classDef orange fill:#FFF3E8,stroke:#F08A24,color:#7C3F00,stroke-width:2px;
classDef violet fill:#F4EDFF,stroke:#8B5CF6,color:#4C1D95,stroke-width:2px;
classDef green fill:#ECFDF3,stroke:#22C55E,color:#14532D,stroke-width:2px;
classDef slate fill:#F8FAFC,stroke:#64748B,color:#1F2937,stroke-width:2px;

A practical gateway usually benefits from four clear layers:

1. Protocol collection
   Only handles field connectivity and raw reads or subscriptions.
2. Normalization
   Maps raw values into stable objects, units, and quality semantics.
3. Local queue
   Owns durability, deduplication, retry behavior, expiration, and replay order.
4. Transport and confirmation
   Delivers upstream and applies platform acknowledgments back into local state.

The reason this split matters is simple: recovery complexity stays inside the queue boundary instead of leaking into every driver and every cloud-facing integration.

5. When store-and-forward should be treated as a hard requirement

It should usually be in scope from the first version when:

• the system needs production traceability or audit history
• the WAN path depends on cellular, VPN, or unstable remote links
• the cloud side applies rate limits or burst restrictions
• data loss affects alarms, KPIs, or settlement logic
• the gateway will later support commands, config sync, or fleet operations

A lighter forwarding model may be enough for:

• labs and demos
• single-device proof-of-concept setups
• non-critical dashboards
• workloads where short aggregation gaps are acceptable

The decision is not “industrial or not.” The decision is whether integrity and explainability have business consequences.

6. Minimum implementation checklist

If you are adding store-and-forward to an industrial gateway, the first release should usually include:

• a durable local queue
• stable message_id generation
• an explicit send state machine
• bounded retries with backoff
• queue depth, retry count, and expiry metrics
• platform-side idempotency or business ACK support
• preserved event and ingest timestamps

If the design only says “we buffer some records locally,” it is usually not enough.

7. Important boundaries

Store-and-forward matters, but not every payload should be retained and replayed forever.

Examples that need boundary decisions:

• raw high-frequency waveforms that should be aggregated at the edge
• commands with physical side effects that need a dedicated control-state model
• short-lived debug logs that only matter during diagnostics

So the real goal is not “never lose anything.” The real goal is to create a controlled, auditable delivery path for the messages whose loss, duplication, or reordering would actually matter.

8. Conclusion

Industrial edge gateways need store-and-forward because they sit exactly where timing mismatches become expensive: stable field collection below, unstable upstream delivery above.
If the gateway only forwards, the system eventually loses control of replay order, deduplication, acknowledgment status, and recovery semantics.

A better model is to treat the gateway as a reliable delivery node. That means giving it explicit responsibility for local persistence, state progression, deduplication, ordering, expiration, and confirmation handling. Once that exists, the platform can still answer the question that matters most after an outage: what happened to this record, and can we still trust it?
