Designing a Protocol Adapter Layer for Industrial IoT

Many industrial IoT teams start with a simple assumption: connect the device, write one driver per protocol, parse the value, and push the result into the platform.

That approach can survive the first few integrations. It usually breaks once the system has to support PLCs, edge gateways, field instruments, third-party cloud endpoints, and custom devices at the same time. At that point, the real difficulty is no longer basic connectivity. The real difficulty is this: how do you give telemetry, quality state, command acknowledgment, retry behavior, and object identity a stable engineering model across very different protocols?

The core conclusion of this article is: industrial protocol unification should not start with “convert every protocol into the same payload.” It should start with a unified adapter contract. That contract should normalize at least five things: object addressing, capability declaration, read/write and subscription semantics, quality and timestamp representation, and error plus confirmation behavior. Without that layer, every new protocol ends up rewriting part of telemetry handling, command flow, search logic, and operations tooling.

Definition Block

In this article, a protocol adapter layer is not a single driver. It is the engineering boundary between protocol-specific connectivity and the platform domain model. Its job is to convert different integration styles such as Modbus, OPC UA, MQTT, and HTTP into a stable contract for objects, capabilities, data quality, and command execution.

Decision Block

If a system only supports one protocol, has very few device types, and does not need cross-protocol command governance, isolated drivers may be enough. But once the platform must support multiple protocols, multiple object types, long-lived operations workflows, and auditable command behavior, a protocol adapter layer becomes the safer default. Otherwise every new integration reopens the same problems in mapping, confirmation, permissions, and troubleshooting.

1. Why “just write a few drivers” turns into a platform problem

1.1 The real differences are not just wire formats

Protocol differences are often described too narrowly:

• Modbus means registers and function codes
• OPC UA means nodes, namespaces, and browse trees
• MQTT means topics and payloads
• HTTP means URLs, methods, and JSON

Those are surface differences. The platform pain usually comes from deeper runtime semantics:

• is the object a register block, a browsable node, or a shadow document
• is the data polled, subscribed, or fetched on demand
• can a write ever produce a clear ACK
• does the timestamp come from the device, gateway, or platform
• is quality explicit, implicit, or only inferred from timeout behavior

If there is no adapter boundary, those differences leak into:

• the device model
• the alarm engine
• the command center
• the search index
• the operations console

At that point, adding one protocol is no longer an integration task. It is a partial platform rewrite.

1.2 Upper layers depend on capabilities, not protocol names

An operations console does not actually care whether a point comes from Modbus or OPC UA. It cares about:

• whether the point can be read
• whether it can be subscribed
• whether it can be written
• how long confirmation takes
• whether the value is trustworthy

In other words, upper layers depend on a capability contract, not on protocol branding.

If protocol details are exposed directly to upper layers, the platform gradually fills up with protocol-specific branching:

• only OPC UA devices can be browsed
• only MQTT devices produce push-based realtime updates
• only HTTP integrations need active polling
• only Modbus writes require read-back confirmation

That may look like practical adaptation. In reality it permanently writes protocol behavior into the core platform.

2. What the adapter layer should actually unify

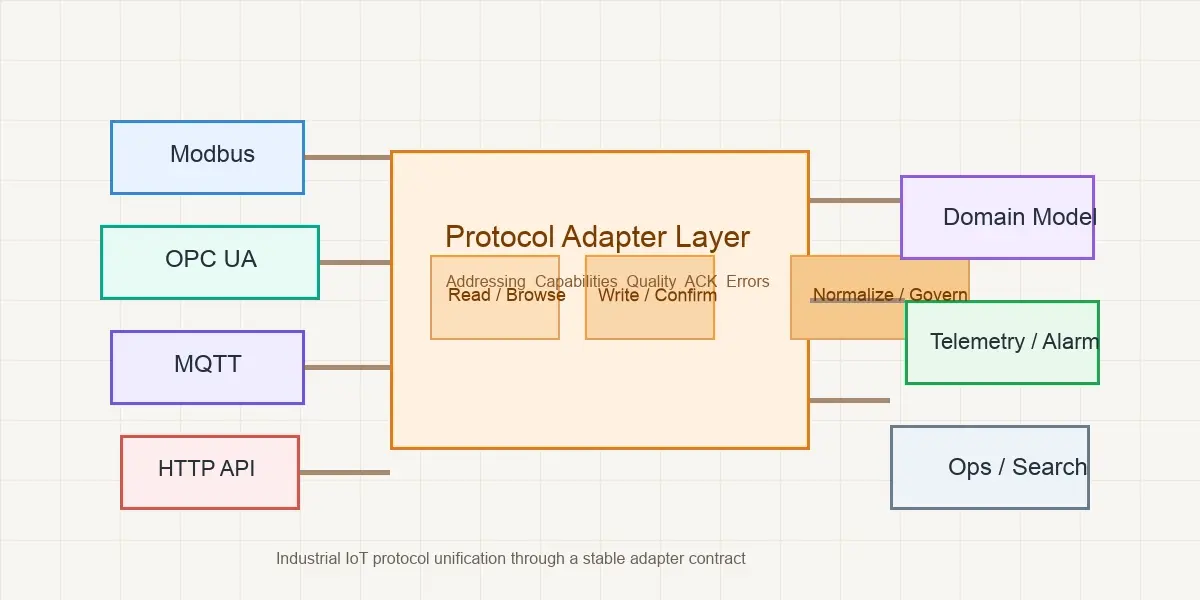

flowchart LR

F("Field Devices / Third-Party Systems"):::slate --> P("Protocol Connectors\nModbus / OPC UA / MQTT / HTTP"):::blue
P --> A("Protocol Adapter Layer\nAddressing / Capabilities / Quality / Errors / Command Confirmation"):::orange
A --> D("Domain Model\nDevices / Points / Commands / Events"):::violet
D --> U("Upper Layers\nTelemetry / Alarms / Search / Operations"):::green

classDef blue fill:#EAF4FF,stroke:#3B82F6,color:#16324F,stroke-width:2px;
classDef orange fill:#FFF3E8,stroke:#F08A24,color:#7C3F00,stroke-width:2px;
classDef violet fill:#F4EDFF,stroke:#8B5CF6,color:#4C1D95,stroke-width:2px;
classDef green fill:#ECFDF3,stroke:#22C55E,color:#14532D,stroke-width:2px;
classDef slate fill:#F8FAFC,stroke:#64748B,color:#1F2937,stroke-width:2px;

2.1 Normalize object identity without erasing native protocol context

Objects look very different depending on protocol.

In Modbus, the object often looks like:

• slave address
• register range
• function code

In OPC UA, it looks more like:

• node ID
• namespace
• properties and references

In MQTT, it often looks like:

• device ID
• topic path
• payload field

If the platform forces all of them into one simplistic shape too early, it loses the context needed for debugging and deeper governance. A safer pattern is:

• define a stable resource_id
• preserve native_address
• declare capabilities and value types separately

This gives upper layers a stable reference while keeping protocol-native context available for diagnosis.

2.2 Capability declaration matters more than payload uniformity

At minimum, the adapter layer should declare whether an object is:

• readable
• subscribable
• writable
• browseable
• historical
• associated with a particular ack_mode

For example:

• a Modbus point may be readable and writable but not subscribable
• an OPC UA node may be browseable and subscribable with explicit quality codes
• an MQTT device state may be subscribable, but writes may require a separate command topic and business ACK
• an HTTP endpoint may only support snapshot reads and asynchronous command status polling

Once those capabilities are explicit, upper layers can be built around capabilities instead of around protocol-specific exceptions.

2.3 Normalize timestamps, quality, and provenance

One of the most underestimated parts of industrial telemetry is not the value itself, but the context around the value:

• when was it produced
• whose clock produced the timestamp
• how trustworthy is it
• is it raw, cached, inferred, or transformed

A normalized reading model should carry at least:

• value
• value_type
• timestamp
• timestamp_source
• quality
• source_protocol
• native_address

If the platform stores only “a value,” it eventually runs into the same failures:

• last-known stale values being treated as live state
• replayed gateway data mixing with realtime data
• delayed HTTP snapshots being mistaken for event time
• rich protocol quality codes being flattened into success=true

3. A durable adapter architecture usually needs four layers

3.1 Connector layer: only solve transport and session behavior

The connector layer should handle:

• connectivity
• authentication
• session lifecycle
• reconnect behavior
• raw request and response parsing

It should not directly own:

• domain naming
• alarm semantics
• business permissions
• generic command state

If those concerns are mixed into the driver, every connector upgrade or library replacement ripples into business behavior.

3.2 Adapter contract layer: expose stable cross-protocol operations

This is the core boundary. It should expose a consistent set of operations such as:

• read(resource_id)
• read_batch(resource_ids)
• subscribe(resource_id)
• write(resource_id, command)
• browse(parent_resource_id)
• describe(resource_id)

The important part is not the exact method names. The important part is that the same action returns the same structural meaning across protocols.

For example, write should not sometimes return a boolean, sometimes a free-form string, and sometimes silent success. A safer unified result structure distinguishes:

• whether the request was accepted by the platform
• whether it was delivered to the protocol endpoint
• whether protocol-level acknowledgment arrived
• whether business-level confirmation arrived
• what failure type occurred
• whether retry is allowed

3.3 Normalization layer: map raw protocol outputs into governed platform fields

This layer handles:

• unit normalization
• enum translation
• status-code mapping
• point naming conventions
• device-to-asset binding

A common mistake is to embed normalization directly inside each driver. That creates duplicated and drifting definitions for the same concepts.

For example, “device online state” might be translated once in an MQTT integration, again in an HTTP poller, and a third time inside a gateway. Eventually nobody can answer which definition the platform should trust.

A better split is:

• connectors capture native information
• normalization maps native information into platform fields
• the domain layer decides how those fields affect alarms, commands, and search

3.4 Domain layer: focus only on devices, points, commands, and events

By the time data reaches the domain layer, the platform should mostly stop caring about protocol names and instead deal with:

• devices
• points
• telemetry
• events
• commands
• quality
• final confirmation status

That is what lets alarming, search, and operations workflows act on stable objects rather than protocol-specific representations.

4. Why command handling needs its own design

flowchart TD

U("Operations Console / App"):::slate --> C("Unified Command Interface\ncommand_id / target / desired value"):::orange
C --> R("Adapter Layer\nTranslation / Timeout / Retry / Idempotency"):::blue
R --> P("Protocol Execution\nModbus write / OPC UA method / MQTT command / HTTP POST"):::violet
P --> A("ACK / Read-Back / Business Confirmation"):::green
A --> S("Command State\naccepted / delivered / confirmed / failed"):::orange

classDef blue fill:#EAF4FF,stroke:#3B82F6,color:#16324F,stroke-width:2px;
classDef orange fill:#FFF3E8,stroke:#F08A24,color:#7C3F00,stroke-width:2px;
classDef violet fill:#F4EDFF,stroke:#8B5CF6,color:#4C1D95,stroke-width:2px;
classDef green fill:#ECFDF3,stroke:#22C55E,color:#14532D,stroke-width:2px;
classDef slate fill:#F8FAFC,stroke:#64748B,color:#1F2937,stroke-width:2px;

4.1 “Write succeeded” means very different things across protocols

For Modbus, success may only mean:

• the slave returned a normal function response

For OPC UA, it may mean:

• the server returned StatusCode Good

For MQTT, it may involve two stages:

• the command message reached the broker
• the device later emitted a business ACK on another topic

For HTTP, success may mean:

• the third-party system returned 202 Accepted
• the actual result must be verified later through task polling

If the platform flattens all of those into one generic “command succeeded” result, it creates dangerous blind spots in remote control, auditability, and rollback handling.

4.2 The command state machine should be unified even when execution paths differ

A safer model usually includes at least:

• accepted
• delivered
• confirmed
• failed
• expired

That gives each protocol a consistent place to express its own confirmation path:

• MQTT devices can move to confirmed on business ACK
• Modbus can move to confirmed on read-back or state convergence
• HTTP can move to confirmed after asynchronous task completion
• audit logs and operations tooling can use one stable lifecycle

Comparison Block

The riskiest place to cut corners is not telemetry parsing. It is command confirmation. Telemetry mistakes create monitoring distortion. Command-confirmation mistakes create mis-control, bad audit history, and failed rollback paths.

5. Which concerns must be governed horizontally

5.1 Store-and-forward is not only a gateway concern

Store-and-forward is often treated as a gateway-only feature. From a platform perspective, the requirement already exists whenever there are:

• intermittently connected devices
• rate-limited HTTP services
• unstable cloud-edge links
• delayed command confirmation paths

That means the adapter layer must define:

• whether a request can be buffered
• whether it can be replayed
• how ordering is preserved
• how replay affects timestamp interpretation

Without those rules, recovered data and delayed confirmations will confuse alarms, analytics, and command tracing at the same time.

5.2 Quality should support uncertainty, not only success and failure

Real industrial state often includes more than two conditions:

• valid
• stale
• cached
• inferred
• connected but quality unknown

If the platform only supports success and failure, upper layers are forced to either trust questionable data or drop it completely. Both choices are worse than representing uncertainty explicitly.

6. Team boundaries and deployment style should follow the adapter boundary

6.1 Protocol teams own connectivity reliability; platform teams own domain consistency

A safer split is usually:

• protocol or gateway teams own connector correctness and transport reliability
• platform teams own the unified contract, domain objects, and governance semantics

If both sides implement their own mappings, drift is almost guaranteed:

• the edge side changes an enum
• the platform side keeps the previous meaning
• dashboards and alarm behavior diverge

One value of the adapter layer is that it turns that boundary into an explicit contract instead of an oral agreement.

6.2 Unification should support capability matrices, not pretend all objects are identical

Unified contracts do not mean every object becomes fully identical. A more realistic model is to let each object carry a capability matrix and let upper layers activate behavior accordingly:

• subscribable objects enter realtime flows
• poll-only objects enter polling schedules
• confirmed-write objects enter closed-loop control
• snapshot-only objects stay out of strict realtime automation

That is much more practical than demanding the same behavior from every protocol family.

7. When a full adapter layer is not worth it yet

This architecture has real cost. It is not the right starting point for every system.

It is usually too early when:

• only one protocol is in scope
• device-object variety is still very small
• there is no unified command center
• cross-protocol search and governance do not exist yet
• the main goal is short-lived proof of concept delivery

In that situation, the better path is often:

• build the single-protocol integration first
• clarify the domain model and command lifecycle early
• converge existing integrations into an adapter layer when protocol count and object variety justify it

In other words, adapter layers are most valuable under conditions of multi-protocol growth, multi-object governance, and long-lived team collaboration. They are not automatically justified on day one just because abstraction feels elegant.

8. Conclusion: unify the engineering boundary, not the wire format

The easiest mistake in industrial protocol integration is to frame the problem as “how do we turn every protocol into one JSON payload.”

The stronger answer is: first unify identity, capabilities, quality, timestamps, error handling, and command confirmation. Then allow each protocol to keep the native details it needs for diagnosis and deep integration.

If a platform tries to erase all protocol differences too early, it loses crucial debugging power. If it never creates a unified boundary, those differences leak into alarms, operations, and search forever. The durable path sits between those two extremes: a protocol adapter contract that absorbs variability without pretending variability does not exist.

Final Judgment

When an industrial IoT platform must support Modbus, OPC UA, MQTT, and HTTP at the same time, the most valuable thing to standardize is not payload shape. It is the engineering contract for addressing, capabilities, quality, errors, and command confirmation. That is what makes protocols replaceable, objects governable, and command behavior auditable.
