ESP32-S3 Edge AI in Practice: Deep Optimization of TensorFlow Lite Micro Inference Performance

As IoT devices move toward intelligence, TinyML plays a critical role.
Traditional AI relies on cloud computing. But for scenarios like wake-word detection, gesture recognition, and environmental anomaly detection, low latency, low power consumption, and privacy matter most.

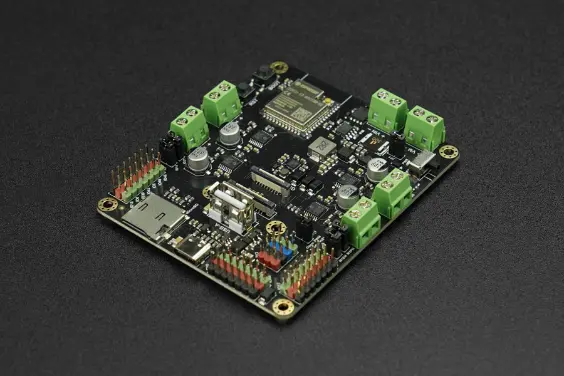

The ESP32-S3, released by Espressif, is designed for on-device AI workloads. Combined with Google’s open-source TensorFlow Lite Micro (TFLM) framework, it enables complex deep learning models to run on resource-constrained MCUs.

This article examines how ESP32-S3 and TFLM work together in real deployment scenarios, and where performance bottlenecks typically appear.

1. Why Run TensorFlow Lite Micro on ESP32-S3?

In TinyML systems, compute limits are always the main constraint.
Compared to earlier chips like ESP32 or ESP32-S2, ESP32-S3 introduces major improvements:

• Dual-core Xtensa® 32-bit LX7
• Dedicated vector instructions for AI workloads

1.1 Hardware-Level AI Acceleration

ESP32-S3 supports SIMD operations.
This allows multiple 8-bit or 16-bit MAC operations in a single clock cycle.

For convolution and fully connected layers, this delivers 5–10× inference speedup.

1.2 Balanced Memory Architecture

TFLM is designed for devices with less than 1 MB RAM.

ESP32-S3 provides:

• 512 KB on-chip SRAM
• Up to 1 GB external Flash
• Optional PSRAM expansion

This flexible design allows larger models, such as lightweight MobileNet or custom CNNs, without sacrificing accuracy.

1.3 Seamless Ecosystem Integration

Espressif’s esp-nn library is deeply integrated into TFLM.

When using standard TFLM APIs, optimized ESP32-S3 kernels are automatically selected.
No hand-written assembly is required.

In real deployments:
ESP32-S3 marks the shift from “barely usable” MCU AI to production-grade edge inference. It is one of the most cost-effective edge computing platforms for AIoT applications.

2. TensorFlow Lite Micro Architecture Overview

TensorFlow Lite Micro is a stripped-down version of TFLite.
It runs directly on bare metal or RTOS, without Linux dependencies.

Understanding its architecture is key to optimization.

2.1 Core Components

TFLM consists of four main parts:

1. Interpreter
   Controls graph execution, memory allocation, and operator dispatch.
2. Op Resolver
   Defines which operators are included. Only required ops should be enabled.
3. Tensor Arena
   A static memory region used for intermediate tensors.
4. Kernels
   Mathematical implementations. ESP32-S3 replaces reference kernels with optimized ones.

2.2 Inference Lifecycle

The following Mermaid diagram shows the full TFLM inference workflow on ESP32-S3:

graph TD
A[Load .tflite model]
B[Initialize Op Resolver]
C[Define Tensor Arena]
D[Create MicroInterpreter]
E[Allocate Tensors]
F[Preprocess Input]
G[Invoke Inference]
H[ESP-NN / SIMD Acceleration]
I[Postprocess Output]
J[Decision / Action]

A --> B --> C --> D --> E --> F --> G --> H --> I --> J
J --> F

Key Note:
Allocate Tensors calculates tensor lifetimes and reuses memory.
Tensor Arena size must be carefully tuned to the model.

3. From Keras Model to ESP32-S3 Firmware

Deploying a model requires compression and conversion.

3.1 Model Training and Conversion

Models are trained in TensorFlow/Keras and exported as .h5 or SavedModel.
They are then converted to .tflite using the TFLite Converter.

Quantization is mandatory.

3.2 Why INT8 Quantization Matters

ESP32-S3 hardware acceleration is optimized for INT8. Converting an FP32 (32-bit floating point) model to INT8 offers the following advantages:

• 75% smaller model size: Parameters shrink from 4 bytes to 1 byte.
• 4–10× faster inference: Avoids expensive floating-point operations.
• Lower power consumption: Integer arithmetic is significantly more energy-efficient than floating-point computation.**

3.3 ESP-IDF Integration

In ESP-IDF, TFLM is included as a component.

The .tflite model is converted into a C array using xxd and linked into firmware.

const unsigned char g_model[] = { 0x1c, 0x00, 0x00, ... };

static tflite::MicroMutableOpResolver<10> resolver;
resolver.AddConv2D();
resolver.AddFullyConnected();

static tflite::MicroInterpreter interpreter(
  model, resolver, tensor_arena, kTensorArenaSize
);

4. ESP-NN: Unlocking ESP32-S3 Performance

If you use the standard open-source TFLM library without optimization, inference runs on the Xtensa core using generic instructions. This does not fully utilize the ESP32-S3’s hardware capabilities.

ESP-NN is Espressif’s low-level library specifically optimized for AI inference. It provides hand-written assembly optimizations for high-frequency operators such as convolution, pooling, and activation functions (e.g., ReLU).

During compilation, TFLM detects the target hardware platform. If it identifies ESP32-S3, it automatically replaces the default Reference Kernels with optimized ESP-NN Kernels.

Performance comparison summary:
In a standard 2D convolution benchmark, enabling ESP-NN acceleration made the ESP32-S3 approximately 7.2× faster compared to running without optimization. This improvement directly impacts the feasibility of real-time voice processing and high-frame-rate gesture recognition.

5. Memory Optimization: Coordinating SRAM and PSRAM

When deploying TensorFlow Lite Micro on ESP32-S3, memory (RAM) is often more limited than compute power. In production deployments, memory constraints often intersect with OTA reliability and long-term maintenance strategy. For a broader system-level discussion, see our analysis of ESP32 edge AI architecture.
The ESP32-S3 provides about 512 KB of on-chip SRAM. It is very fast, but it can quickly become insufficient when running vision models.

Balancing internal SRAM and external PSRAM is critical for optimizing TinyML performance.

5.1 Static Allocation Strategy for Tensor Arena

TFLM uses a continuous memory block called the Tensor Arena to store all intermediate tensors during inference.

• Prioritize on-chip SRAM
  For small models such as audio recognition or sensor classification, allocate the entire Tensor Arena in internal SRAM. This ensures the lowest read/write latency.
• PSRAM expansion strategy
  For models like Person Detection that involve large feature maps, SRAM may not be enough to hold multiple convolution outputs. In this case, allocate the Tensor Arena in external PSRAM. PSRAM is slightly slower because it is accessed through SPI or Octal interfaces. However, the ESP32-S3 cache mechanism helps reduce the performance impact.

5.2 Separating Model Weights (Flash) from Runtime Memory (RAM)

To save RAM, model weights should remain in Flash memory and be mapped using XIP (Execute In Place).

Use the TFLITE_SCHEMA_RESERVED_BUFFER macro to ensure model parameters are not copied into RAM at startup. This allows the full 512 KB of SRAM to be reserved for dynamic tensors.

Key Tip:
In ESP-IDF, enable CONFIG_SPIRAM_USE_MALLOC and use
heap_caps_malloc(size, MALLOC_CAP_SPIRAM)
to precisely control where tensor buffers are allocated.

6. Performance Tuning: Maximizing ESP32-S3 Vector Compute

At the edge, every millisecond matters.
To achieve maximum inference speed, developers must focus on quantization strategy and operator optimization.

6.1 Full Integer Quantization

The ESP32-S3 vector instruction set is optimized specifically for INT8 arithmetic.
If a model includes floating-point (FP32) operators, TFLM falls back to slower software-based execution.

• Post-Training Quantization (PTQ)
  When exporting a TFLite model, provide a representative dataset. This maps the weight dynamic range to -128 to 127.
• Quantization-Aware Training (QAT)
  For accuracy-sensitive models, simulate quantization effects during training.
  Benchmark results show that fully quantized models on ESP32-S3 can run over 6× faster than floating-point models.

6.2 Profiling Tools

Espressif provides precise timing tools for performance measurement.
Developers can use esp_timer_get_time() to measure the execution time of interpreter.Invoke().

Performance Reference Table: Typical Inference Results on ESP32-S3

Note: Data based on 240 MHz CPU frequency with hardware vector acceleration enabled.

7. Typical Use Cases: TinyML in Real AIoT Deployments

The combination of ESP32-S3 and TFLM supports a wide range of edge AI applications, from voice to vision.

7.1 Voice Interaction: Offline Keyword Spotting (KWS)

This is one of the most mature TFLM use cases.

Raw audio is captured from a microphone. A Fast Fourier Transform (FFT) is applied to generate MFCC features. These features are fed into a convolutional neural network for classification.

ESP32-S3’s vector instructions accelerate FFT processing. This allows real-time wake-word detection while maintaining very low power consumption.

7.2 Edge Vision: Smart Doorbells and Face Detection

With the ESP32-S3 camera interface, TFLM can run lightweight vision models.

• Low-power sensing
  A PIR sensor first wakes up the ESP32-S3. The chip captures an image and uses TFLM to quickly determine whether a human is present.
• Advantages
  Compared to uploading images to the cloud for AI processing, local pre-filtering reduces Wi-Fi power consumption by about 90% and significantly improves user privacy.

7.3 Industrial Predictive Maintenance: Vibration Analysis

In industrial monitoring systems, a three-axis accelerometer collects motor vibration data.

A TFLM model analyzes frequency-domain features locally and detects early signs of wear, imbalance, or overheating.

With edge inference, devices do not need to continuously transmit high-frequency raw data. They only send alerts when anomalies are detected.

8. Practical Advice: Three Steps to Optimize TFLM Projects

1. Trim unused operators
   The default AllOpsResolver includes all supported operators and can consume 100–200 KB of Flash. Use MicroMutableOpResolver and add only the required operators (e.g., AddConv2D, AddReshape) to significantly reduce firmware size.
2. Balance clock speed and power consumption
   ESP32-S3 supports up to 240 MHz. In battery-powered scenarios, adjust the frequency dynamically based on workload. TFLM inference is compute-intensive. A higher clock speed shortens inference time, allowing the chip to enter Deep Sleep sooner.
3. Leverage dual-core architecture
   ESP32-S3 has two cores. Run the Wi-Fi stack and sensor acquisition on Core 0. Run TFLM inference independently on Core 1.
   This avoids network interruptions affecting inference stability.

Key Takeaway:
High performance on ESP32-S3 requires understanding the memory hierarchy. Careful SRAM management and full integer quantization are essential to pushing MCU-level AI to its limits.

9. Implementation Example: Integrating TFLM in ESP-IDF

Running inference on ESP32-S3 requires proper MicroInterpreter configuration and linking the esp-nn acceleration library.

Below is a typical project structure and workflow.

9.1 Model Loading and Interpreter Initialization

The .tflite model is usually converted into a hexadecimal C array and stored in Flash.

To avoid unnecessary memory usage, use a pointer that directly references the Flash address instead of copying the model into RAM.

static uint8_t tensor_arena[kTensorArenaSize] __attribute__((aligned(16)));

static tflite::MicroMutableOpResolver<5> resolver;
resolver.AddConv2D();
resolver.AddFullyConnected();

static tflite::MicroInterpreter interpreter(
  model, resolver, tensor_arena, kTensorArenaSize, error_reporter
);

interpreter.AllocateTensors();

9.2 Critical Step: Input Preprocessing

Raw data collected by the ESP32-S3, such as ADC samples or camera pixels, is typically in uint8 or int16 format.

Before feeding this data into a quantized model, you must ensure that the scale and zero-point match the values used during training.

If this step is handled incorrectly, inference accuracy can drop dramatically.

10. TFLM vs Other Edge AI Frameworks

In the ESP32-S3 ecosystem, TensorFlow Lite Micro is not the only option. Developers can choose from several edge inference frameworks. The table below compares the most common ones:

Core Recommendation:
If your project values development efficiency and strong community support, TFLM is the preferred choice.
If you need to extract every bit of performance from the S3 and your model is relatively simple, consider ESP-DL.

11. Deployment Pitfalls: Three Common Mistakes

1. Ignoring memory alignment requirements
   ESP32-S3 SIMD instructions require tensor memory addresses to be 16-byte aligned.
   If tensor_arena is not properly aligned, inference may trigger StoreProhibited exceptions or suffer significant performance loss.
2. Operator shadowing issues
   When integrating esp-nn, check your CMakeLists.txt carefully. Make sure the optimized library is linked instead of the default reference implementation.
   You can verify this by measuring convolution layer execution time. If a small convolution takes more than 50 ms, hardware acceleration is likely not active.
3. Ignoring quantization parameters
   Do not feed raw 0–255 pixel values directly into an INT8 model.
   Input data must be linearly mapped using the model’s input->params.scale and input->params.zero_point.

12. Where ESP32-S3 TinyML Is Heading

As Espressif continues improving hardware acceleration, we expect the following trends for TFLM on ESP32-S3:

• Multi-modal fusion
  Use the dual-core architecture to process audio wake-word detection on one core and visual gesture recognition on the other.
• On-device learning
  TFLM currently focuses on inference. In the future, partial weight update techniques may allow devices to fine-tune locally based on user behavior.
• Advanced model compression
  Techniques such as Neural Architecture Search (NAS) will produce more efficient backbone networks tailored specifically for ESP32-S3.

13. System Execution Diagram: ESP32-S3 Memory and TFLM

The diagram below illustrates the relationship between Flash, PSRAM, SRAM, Tensor Arena, and ESP-NN from the actual memory architecture perspective of the ESP32-S3.

---
title: "ESP32-S3 Memory Architecture with TFLM"
---
graph TD

Flash["SPI Flash (4–16MB)\n• .tflite model (.rodata)\n• Firmware code"]
XIP["XIP Mapping\nFlash → Address Space"]

Flash -->|"Execute-In-Place"| XIP

subgraph SRAM["On-Chip SRAM (~512KB)"]
direction TB
Arena["Tensor Arena\n(Activations / Buffers)"]
Interp["TFLM MicroInterpreter"]
end

XIP -->|"Model Read"| Interp
Interp -->|"Allocate"| Arena

PSRAM["PSRAM (Optional)\n4–8MB\n(Large Buffers / Input Frames)"]

PSRAM -->|"Input / Feature Buffers"| Arena

ESPNN["ESP-NN Kernels\n(SIMD / DSP)"]

Interp <-->|"Op Dispatch"| ESPNN

Note["Key Principles:\n1. Keep the model in Flash (XIP), do not copy it into RAM\n2. Allocate Tensor Arena in on-chip SRAM for low latency\n3. Use PSRAM only for large buffers, not operator internal tensors"]

Arena -.-> Note

14. FAQ: ESP32-S3 and TensorFlow Lite Micro

Summary

This article systematically explored the complete workflow for deploying TensorFlow Lite Micro on ESP32-S3.

We examined how the Xtensa LX7 vector instruction set accelerates deep learning through SIMD. We also covered INT8 quantization and memory hierarchy optimization (SRAM / PSRAM) in detail.

Benchmark results and code examples demonstrate the significant performance gains achieved by enabling esp-nn acceleration.

For AIoT developers, mastering this TinyML deployment strategy is essential for building high-performance, low-power edge intelligence systems.

Key Takeaways

Best Practices: Ensure memory alignment and trim unused operators

Core Architecture: TFLM interpreter with ESP-NN hardware acceleration

Performance Impact: INT8 quantization delivers up to 6× speed improvement

Memory Optimization: Careful Tensor Arena allocation is critical

If your team is moving from TinyML prototyping to production-grade deployment and needs support with firmware architecture, memory optimization, or long-term maintenance, this is where our ESP32 development services are designed to help.
